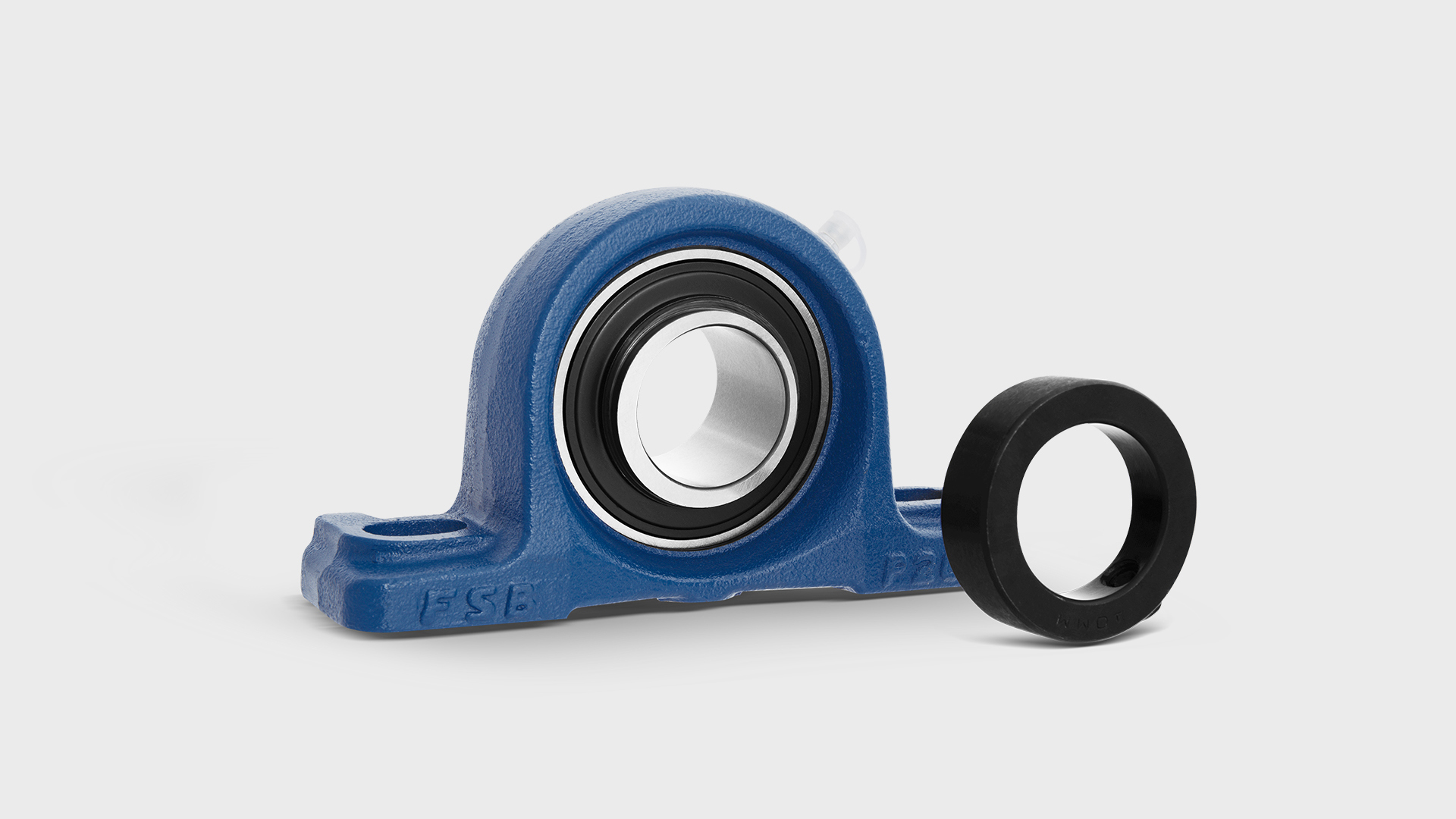

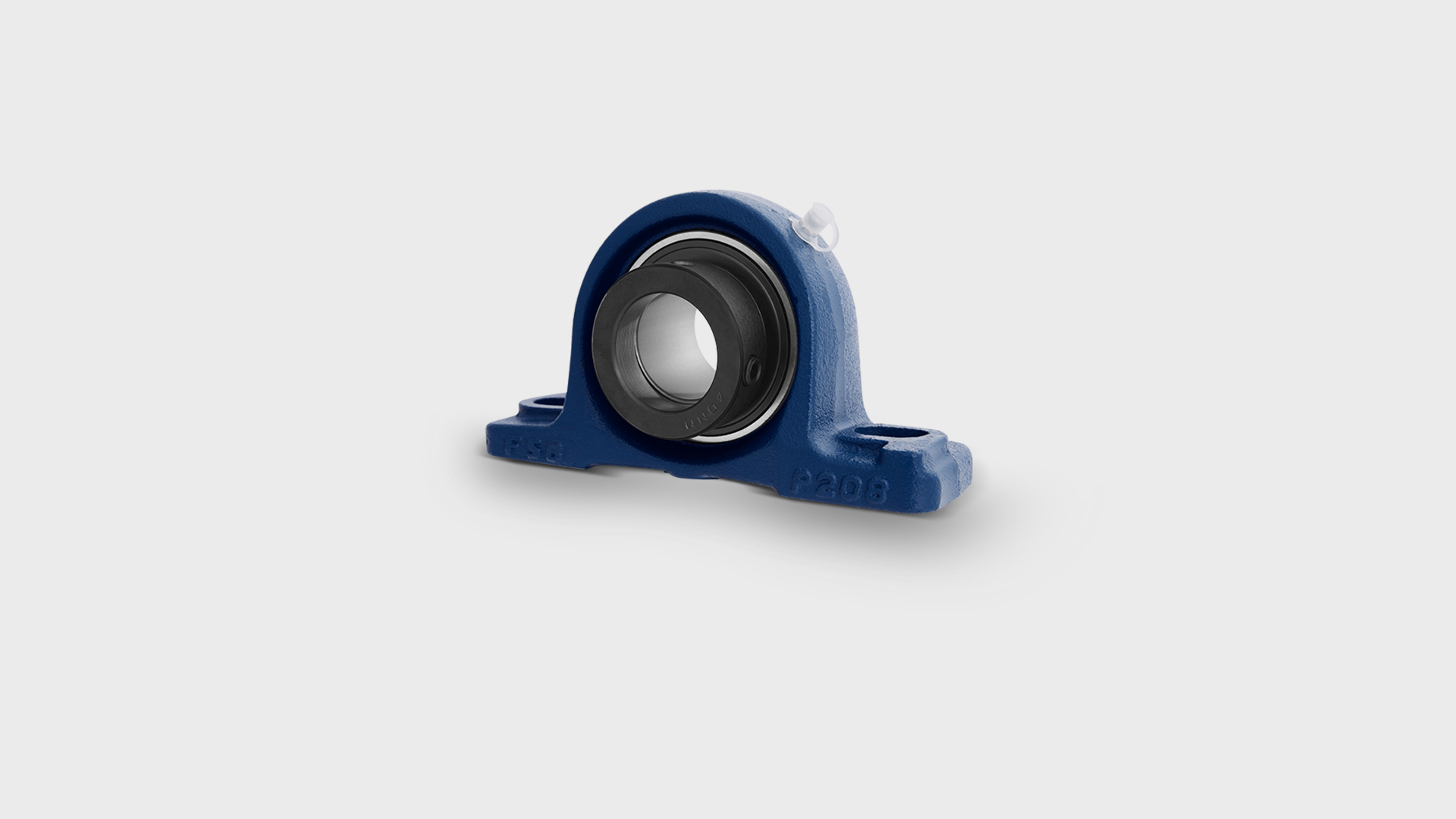

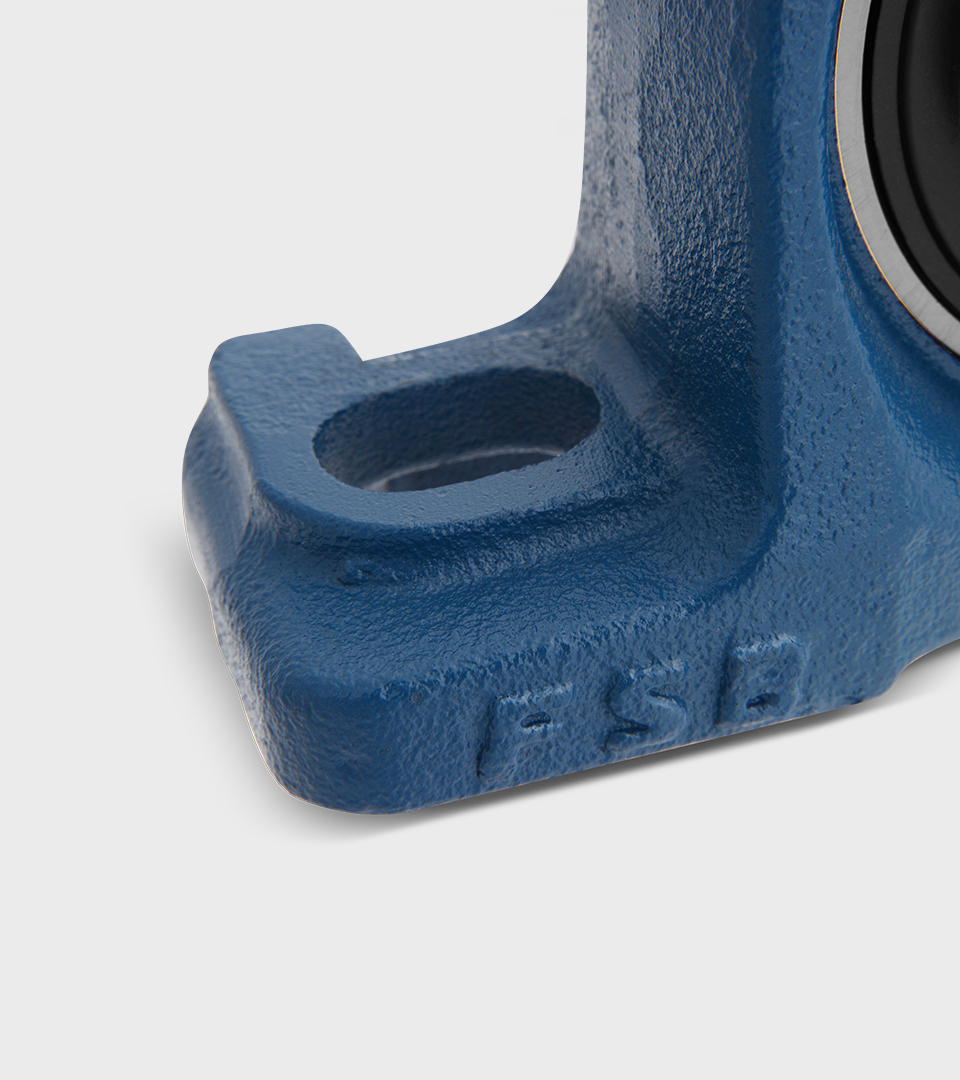

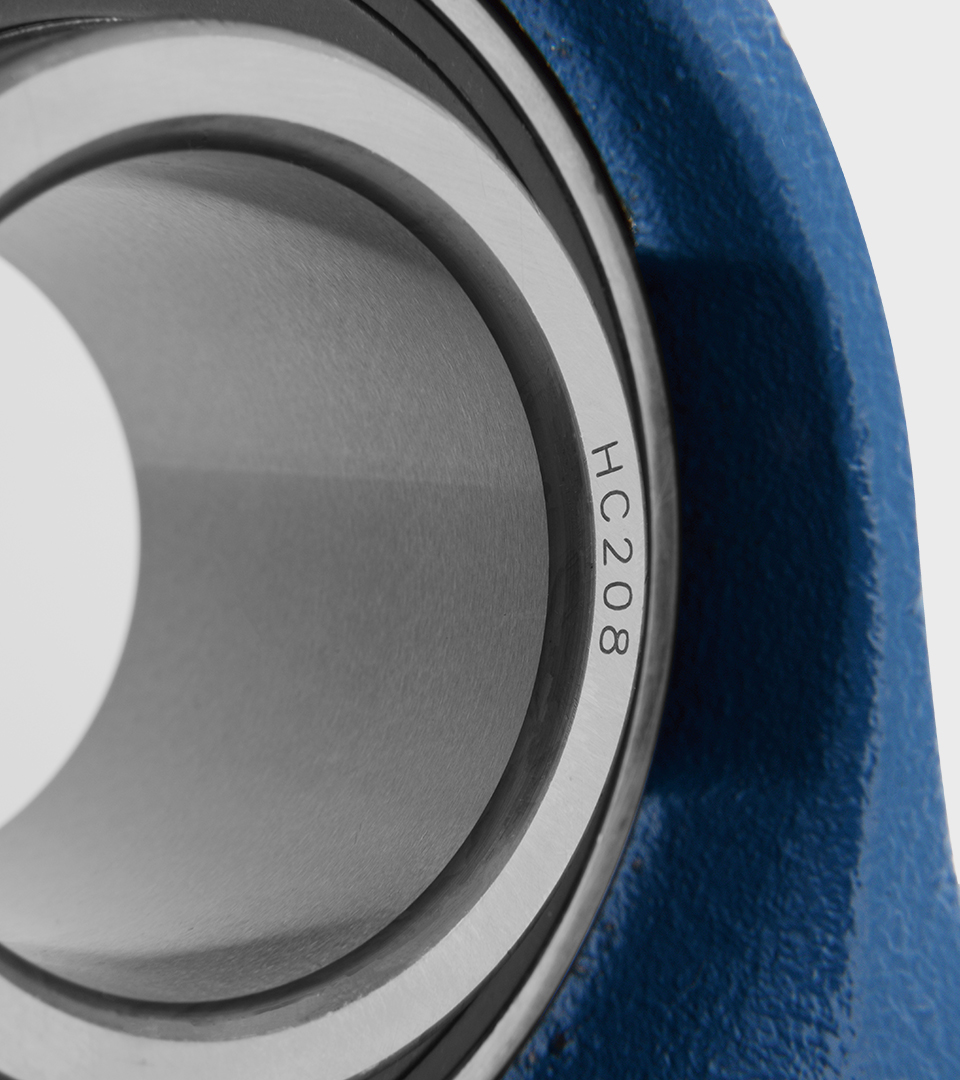

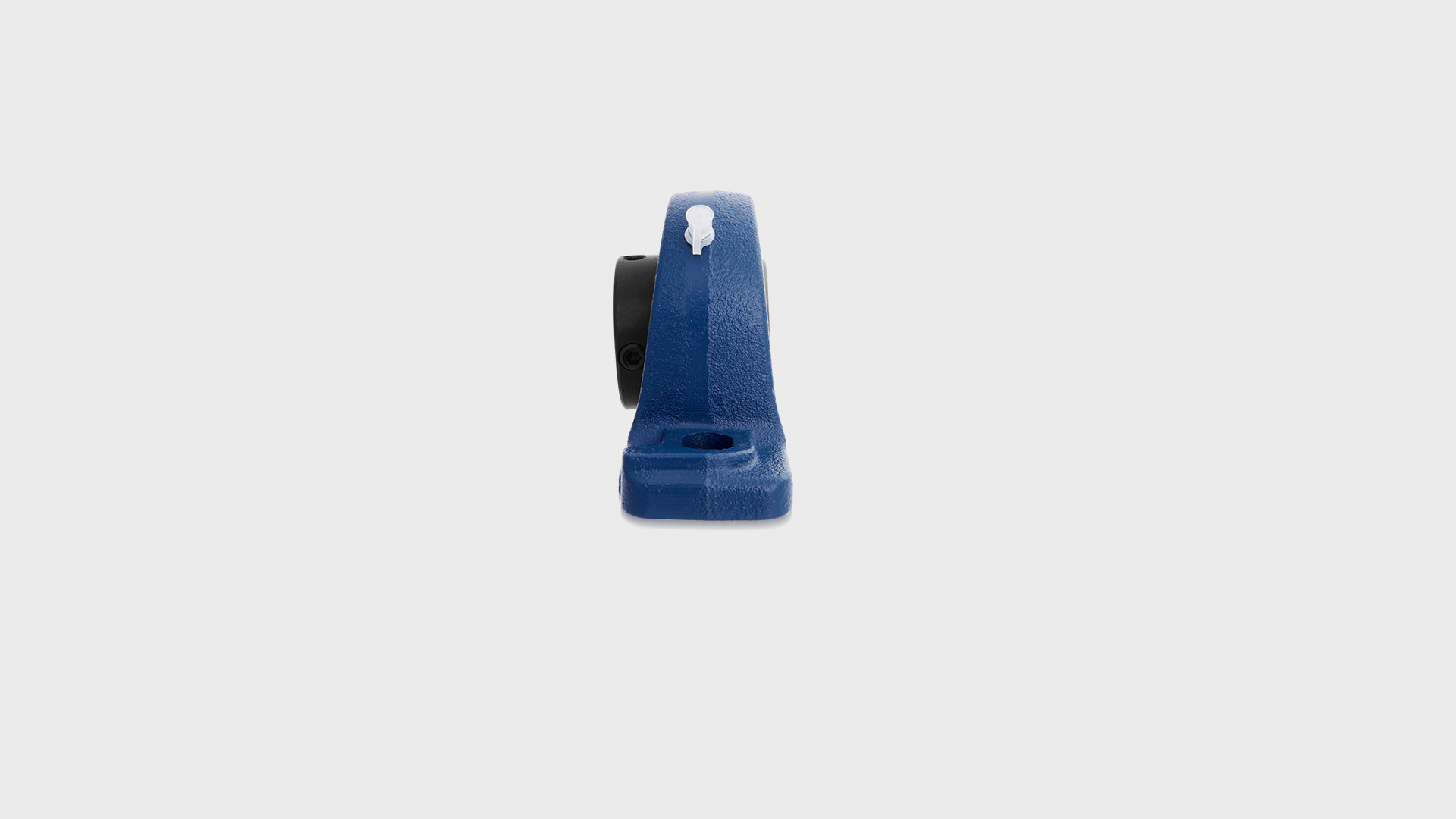

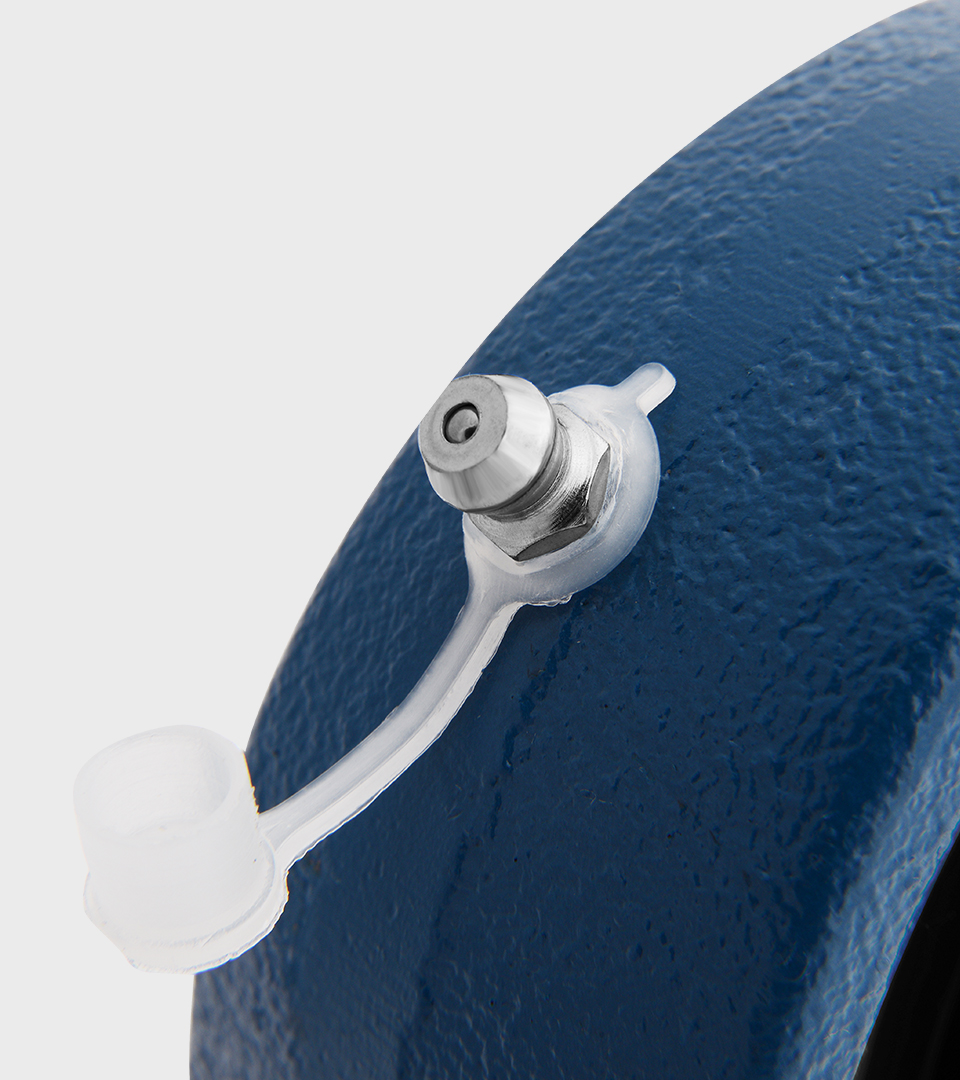

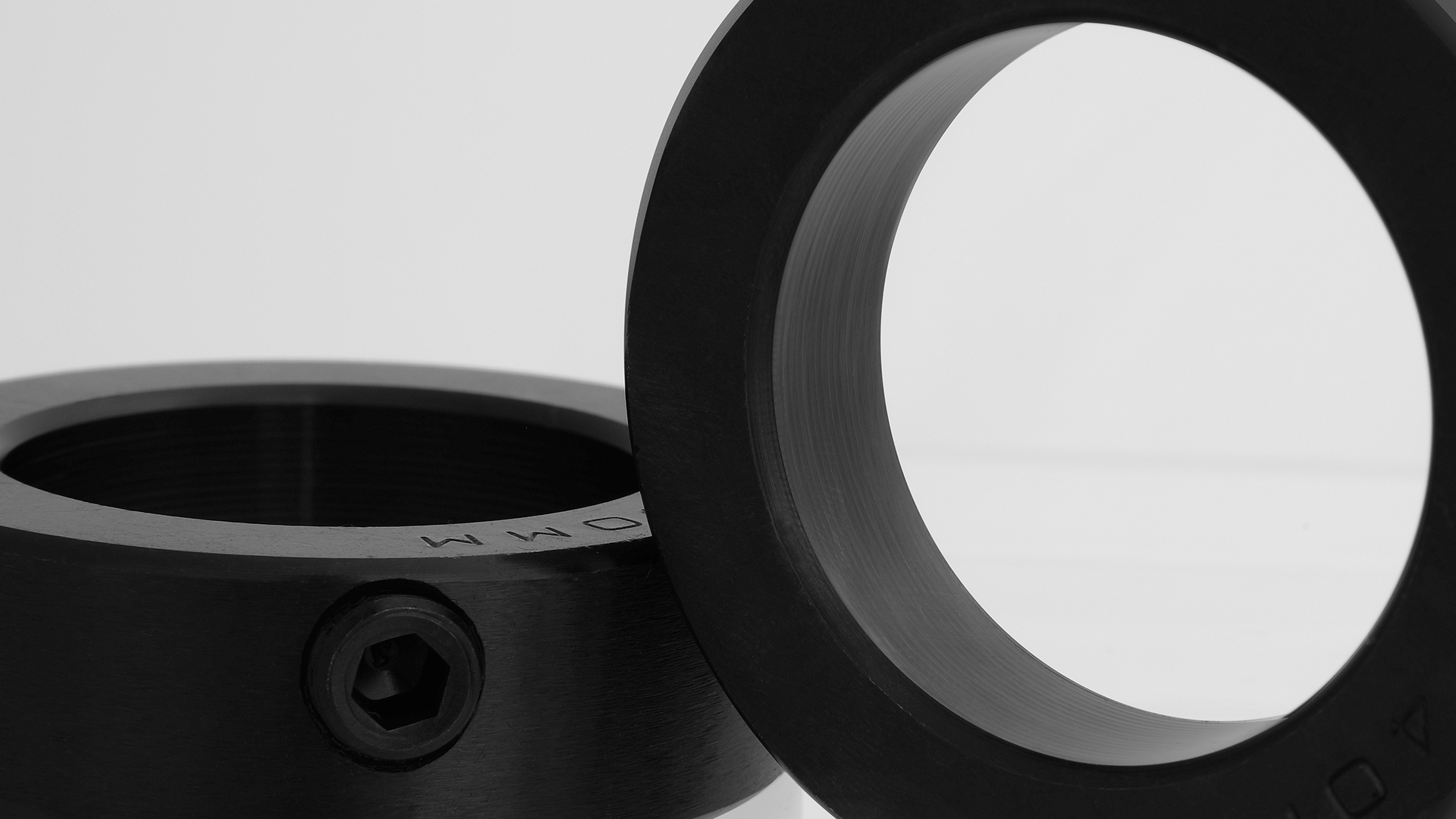

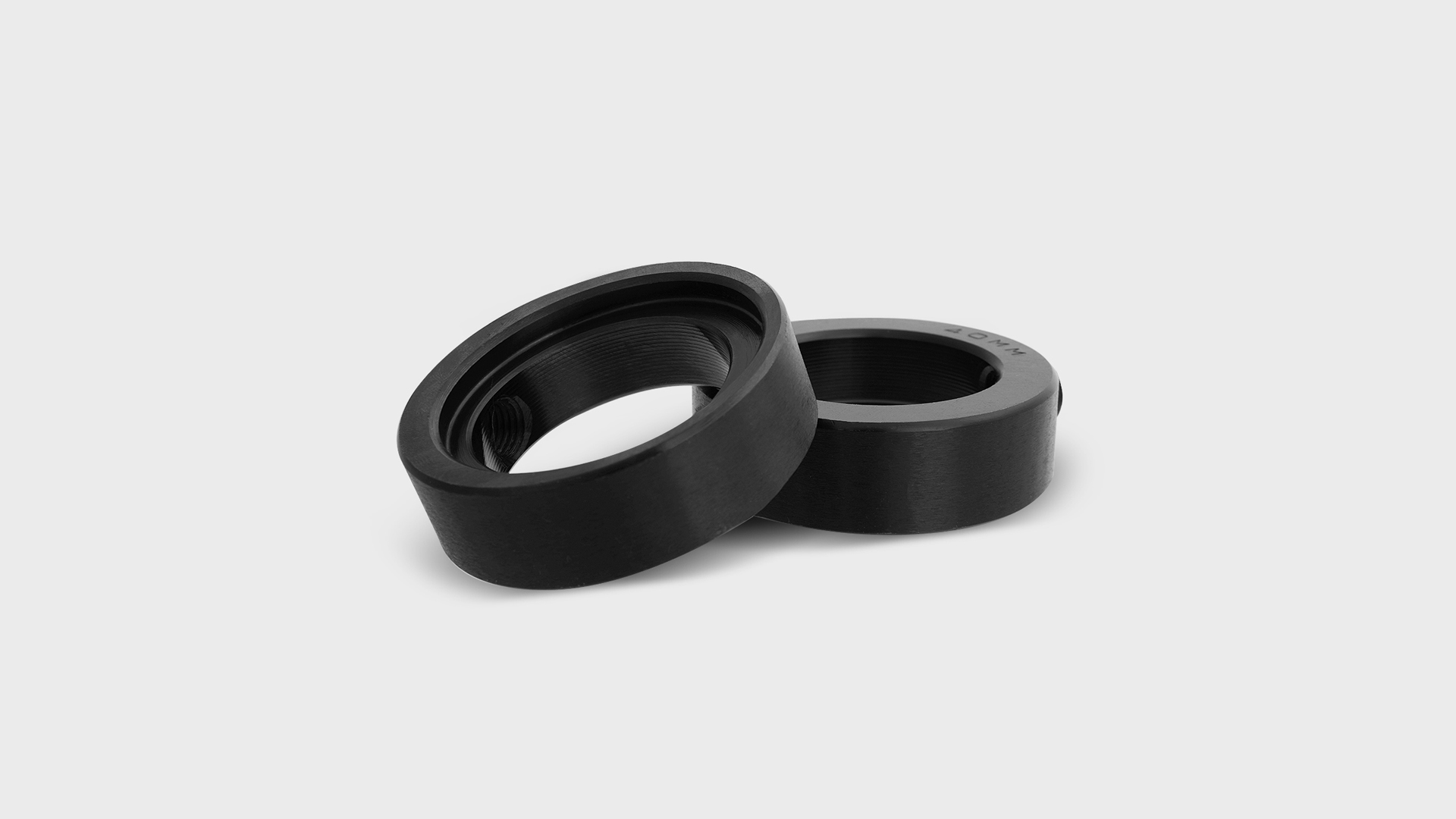

HCP200

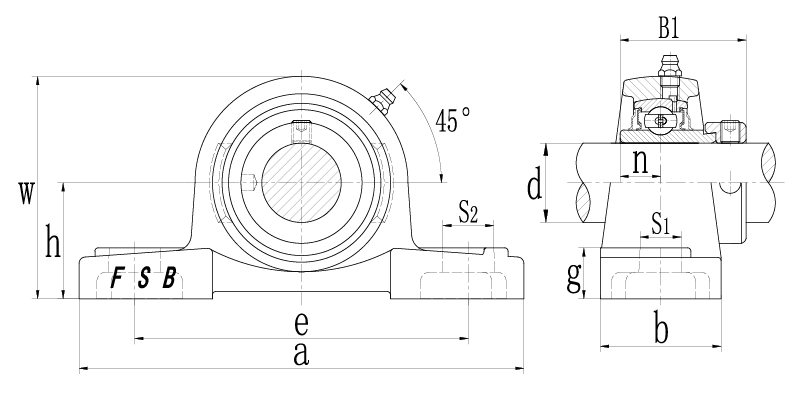

| 帶座軸承型號 | 軸 徑 | 尺 寸 | 螺 栓 | 軸承芯型號 | 軸承座型號 | 基本額定載荷 | 疲勞極限載荷 | 極限轉速(SRS) 軸的配合公差（h6） | 重量 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 動載荷 | 靜載荷 | |||||||||||||||||||||
| mm | in | mm / in | mm | in | — | — | Cr | Cor | Cur | n | m | |||||||||||
| d | h | a | e | b | S2 | S1 | g | w | B1 | n | KN | ? ? ? ?r / min | ≈Kg | |||||||||
| HCP201 | 12 | — | 30.2 | 125 | 96 | 32 | 16 | 12 | 13 | 57 | 37.3 | 13.9 | M10 | — | HC201 | P203 | 9.56 | 4.75 | 0.20 | 9500 | 0.7 | |
| HCP201-8 | — | 1/2 | 1-3/16 | 4-59/64 | 3-25/32 | 1-17/64 | 5/8 | 15/32 | 33/64 | 2-1/4 | 1.4685 | 0.5472 | — | 3/8 | HC201-8 | |||||||
| HCP202 | 15 | — | 30.2 | 125 | 96 | 32 | 16 | 12 | 13 | 57 | 37.3 | 13.9 | M10 | — | HC202 | P203 | 9.56 | 4.75 | 0.20 | 9500 | 0.7 | |
| HCP202-10 | — | 5/8 | 1-3/16 | 4-59/64 | 3-25/32 | 1-17/64 | 5/8 | 15/32 | 33/64 | 2-1/4 | 1.4685 | 0.5472 | — | 3/8 | HC202-10 | |||||||
| HCP203 | 17 | — | 30.2 | 125 | 96 | 32 | 16 | 12 | 13 | 57 | 37.3 | 13.9 | M10 | — | HC203 | P203 | 9.56 | 4.75 | 0.20 | 9500 | 0.7 | |
| HCP203-11 | — | 11/16 | 1-3/16 | 4-59/64 | 3-25/32 | 1-17/64 | 5/8 | 15/32 | 33/64 | 2-1/4 | 1.4685 | 0.5472 | — | 3/8 | HC203-11 | |||||||
| HCP204 | 20 | — | 33.3 | 127 | 95 | 38 | 19 | 13 | 15 | 65 | 43.7 | 17.1 | M10 | — | HC204 | P204 | 12.70 | 6.55 | 0.28 | 8500 | 0.7 | |
| HCP204-12 | — | 3/4 | 1-5/16 | 5 | 3-3/4 | 1-1/2 | 3/4 | 1/2 | 19/32 | 2-9/16 | 1.7205 | 0.6732 | — | 3/8 | HC204-12 | |||||||
| HCP205 | 25 | — | 36.5 | 140 | 105 | 38 | 16 | 13 | 16 | 70 | 44.3 | 17.4 | M10 | — | HC205 | P205 | 14.00 | 7.80 | 0.34 | 7000 | 0.8 | |
| HCP205-14 | — | 7/8 | 1-7/16 | 5-1/2 | 4-1/8 | 1-1/2 | 5/8 | 1/2 | 5/8 | 2-3/4 | 1.7441 | 0.6850 | — | 3/8 | HC205-14 | |||||||
| HCP205-15 | — | 15/16 | HC205-15 | |||||||||||||||||||
| HCP205-16 | — | 1 | HC205-16 | |||||||||||||||||||
| HCP206 | 30 | — | 42.9 | 165 | 121 | 48 | 21 | 17 | 18 | 83 | 48.4 | 18.25 | M14 | — | HC206 | P206 | 19.50 | 11.20 | 0.48 | 6300 | 1.4 | |
| HCP206-18 | — | 1-1/8 | 1-11/16 | 6-1/2 | 4-49/64 | 1-7/8 | 53/64 | 21/32 | 45/64 | 3-17/64 | 1.9055 | 0.7185 | — | 1/2 | HC206-18 | |||||||
| HCP206-19 | — | 1-3/16 | HC206-19 | |||||||||||||||||||
| HCP206-20 | — | 1-1/4 | HC206-20 | |||||||||||||||||||
| HCP207 | 35 | — | 47.6 | 167 | 127 | 48 | 21 | 17 | 19 | 94 | 51.1 | 18.8 | M14 | — | HC207 | P207 | 25.50 | 15.30 | 0.66 | 5300 | 1.7 | |
| HCP207-20 | — | 1-1/4 | 1-7/8 | 6-37/64 | 5 | 1-7/8 | 53/64 | 21/32 | 3/4 | 3-45/64 | 2.0118 | 0.7402 | — | 1/2 | HC207-20 | |||||||
| HCP207-21 | — | 1-5/16 | HC207-21 | |||||||||||||||||||
| HCP207-22 | — | 1-3/8 | HC207-22 | |||||||||||||||||||
| HCP207-23 | — | 1-7/16 | HC207-23 | |||||||||||||||||||
| HCP208 | 40 | — | 49.2 | 184 | 137 | 54 | 25 | 17 | 19 | 100 | 56.3 | 21.4 | M14 | — | HC208 | P208 | 30.70 | 19.00 | 0.80 | 4800 | 2.0 | |
| HCP208-24 | — | 1-1/2 | 1-15/16 | 7-1/4 | 5-25/64 | 2-1/8 | 63/64 | 21/32 | 3/4 | 3-15/16 | 2.2165 | 0.8425 | — | 1/2 | HC208-24 | |||||||
| HCP208-25 | — | 1-9/16 | HC208-25 | |||||||||||||||||||
| HCP209 | 45 | — | 54.0 | 190 | 146 | 54 | 22 | 17 | 20 | 108 | 56.3 | 21.4 | M14 | — | HC209 | P209 | 33.20 | 21.60 | 0.92 | 4300 | 2.4 | |
| HCP209-26 | — | 1-5/8 | 2-1/8 | 7-15/32 | 5-3/4 | 2-1/8 | 55/64 | 21/32 | 25/32 | 4-1/4 | 2.2165 | 0.8425 | — | 1/2 | HC209-26 | |||||||
| HCP209-27 | — | 1-11/16 | HC209-27 | |||||||||||||||||||
| HCP209-28 | — | 1-3/4 | HC209-28 | |||||||||||||||||||
| HCP210 | 50 | — | 57.2 | 206 | 159 | 60 | 25 | 20 | 22 | 114 | 62.7 | 24.6 | M16 | — | HC210 | P210 | 35.10 | 23.20 | 0.98 | 4000 | 2.8 | |
| HCP210-30 | — | 1-7/8 | 2-1/4 | 8-1/8 | 6-1/4 | 2-3/8 | 63/64 | 25/32 | 55/64 | 4-1/2 | 2.4685 | 0.9685 | — | 5/8 | HC210-30 | |||||||
| HCP210-31 | — | 1-15/16 | HC210-31 | |||||||||||||||||||
| HCP210-32 | — | 2 | HC210-32 | |||||||||||||||||||
| HCP211 | 55 | — | 63.5 | 219 | 171 | 60 | 25 | 20 | 22 | 126 | 71.4 | 27.75 | M16 | — | HC211 | P211 | 43.60 | 29.00 | 1.25 | 3600 | 3.6 | |
| HCP211-32 | — | 2 | 2-1/2 | 8-5/8 | 6-47/64 | 2-3/8 | 63/64 | 25/32 | 55/64 | 4-31/32 | 2.8110 | 1.0925 | — | 5/8 | HC211-32 | |||||||
| HCP211-34 | — | 2-1/8 | HC211-34 | |||||||||||||||||||
| HCP211-35 | — | 2-3/16 | HC211-35 | |||||||||||||||||||
| HCP212 | 60 | — | 69.8 | 241 | 184 | 70 | 25 | 20 | 25 | 138 | 77.8 | 30.95 | M16 | — | HC212 | P212 | 52.70 | 36.00 | 1.53 | 3400 | 5.2 | |
| HCP212-36 | — | 2-1/4 | 2-3/4 | 9-1/2 | 7-1/4 | 2-3/4 | 63/64 | 25/32 | 63/64 | 5-7/16 | 3.0630 | 1.2185 | — | 5/8 | HC212-36 | |||||||
| HCP212-38 | — | 2-3/8 | HC212-38 | |||||||||||||||||||
| HCP212-39 | — | 2-7/16 | HC212-39 | |||||||||||||||||||
| HCP213 | 65 | — | 76.2 | 265 | 203 | 70 | 29 | 25 | 27 | 150 | 85.6 | 34.3 | M20 | — | HC213 | P213 | 57.20 | 40.00 | 1.70 | 3000 | 6.3 | |
| HCP213-40 | — | 2-1/2 | 3 | 10-7/16 | 8 | 2-3/4 | 1-9/64 | 63/64 | 1-1/16 | 5-29/32 | 3.3701 | 1.3504 | — | 3/4 | HC213-40 | |||||||
| HCP214 | 70 | — | 79.4 | 266 | 210 | 72 | 31 | 25 | 27 | 156 | 85.3 | 34.1 | M20 | — | HC214 | P214 | 62.40 | 45.00 | 1.86 | 2800 | 7.4 | |
| HCP214-42 | — | 2-5/8 | 3-1/8 | 10-15/32 | 8-9/32 | 2-27/32 | 1-7/32 | 63/64 | 1-1/16 | 6-9/64 | 3.3583 | 1.3425 | — | 3/4 | HC214-42 | |||||||
| HCP214-43 | — | 2-11/16 | HC214-43 | |||||||||||||||||||
| HCP214-44 | — | 2-3/4 | HC214-44 | |||||||||||||||||||
| HCP215 | 75 | — | 82.6 | 275 | 217 | 74 | 31 | 25 | 28 | 163 | 92.1 | 37.5 | M20 | — | HC215 | P215 | 66.30 | 49.00 | 2.04 | 2600 | 7.8 | |
| HCP215-47 | — | 2-15/16 | 3-1/4 | 10-13/16 | 8-17/32 | 2-29/32 | 1-7/32 | 63/64 | 1-3/32 | 6-13/32 | 3.6260 | 1.4764 | — | 3/4 | HC215-47 | |||||||
| HCP215-48 | — | 3 | HC215-48 | |||||||||||||||||||
